C core-C型磁芯

views：618time：2020-05-08 18:51:26

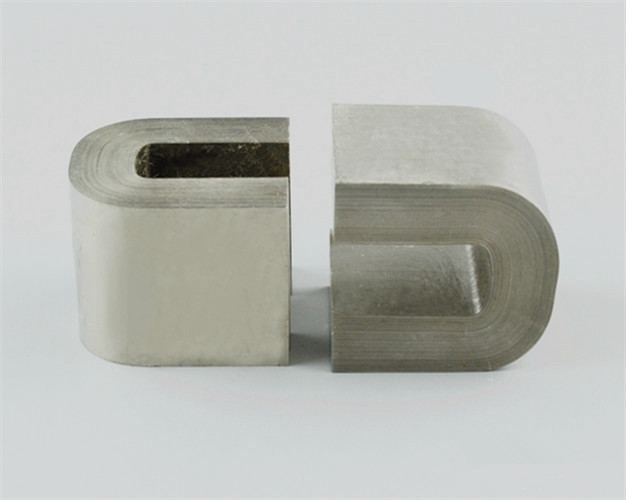

C型磁芯

C型磁芯

Features

Application Field：

1.output filter reactor used in switching power supply

2.Iron cores for switching power supply transformer

3.Inverter welding machine and wind-power generation output filtering inductance

4.Iron cores for distribution transformer

5.Large current energy storage inductors

Characteristics

1.Made from iron-based amorphous or iron-based nanocrystalline materials

2.High Bs-high working efficiency

3.Easy coiling

4.High permeability and low coercive force-improve the efficiency of the device and reduce the volume

5.Low loss-good control of the temperature-rise of the device

6.good temperature stability-allows working temperature from -55~120℃

Specifications


a：Lamination thickness　b： Inner width　c： Inner length　d：height　

e：Outside width 　f： Outer length　R：Chamfer

lamination factor：0.8

Can be customized according to customer requirements

磁芯型号	a 叠片厚度 Lamination thickness	b 内宽 Inside width	c 内长 Inside length	d 高 height	e 外宽 Outside width	f 外长 Outside length
磁芯型号	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
CC-4	9	10	32.8	15	28.0	50.8
CC-4B	9	11	33	15	29.0	51
CC-6.3	10	11	33	20	31.0	53
CC-8	11	13	30	20	35.0	52
CC-10	11	13	40	20	35.0	62
CC-16A	11	13	40	25	35.0	62
CC-16B	11	13	50	25	35.0	72
CC-17	12	30	60	20	54.0	84
CC-20	11	13	50	30	35.0	72
CC-21	10	17	37	40	37.0	57
CC-25	13	15	56	25	41.0	82
CC-26	16	40	45	20	72.0	77
CC-26B	16	20	50	20	52.0	82
CC-32	13	15	56	30	41.0	82
CC-33	10	20	58	40	40.0	78
CC-34	15	30	60	25	60.0	90
CC-40	13	15	56	35	41.0	82
CC-50	16	20	70	25	52.0	102
CC-63	16	20	70	30	52.0	102
CC-64	16	20	43	45	52.0	75
CC-65	16	20	58	45	52.0	90
CC-70	20	40	60	30	80.0	100
CC-80	16	20	70	40	52.0	102
CC-84	12	30	60	20	54.0	84
CC-100	16	20	70	45	52.0	102
CC-117	20	35	77	20	75.0	117
CC-128	22	35	84	25	79.0	128
CC-140	26	45	88	30	97.0	140
CC-140A	26	45	88	40	97.0	140
CC-168S	20.4	30	154.2	20	70.8	195
CC-125	19	25	83	35	63.0	121
CC-160	19	25	83	40	63.0	121
CC-180	25	35	65	30	85.0	115
CC-193	40	50	113	40	130.0	193
CC-200	19	25	83	50	63.0	121
CC-210	40	50	130	50	130.0	210
CC-367S	25.8	67	97.8	25	118.6	149.4

modelC型磁芯
